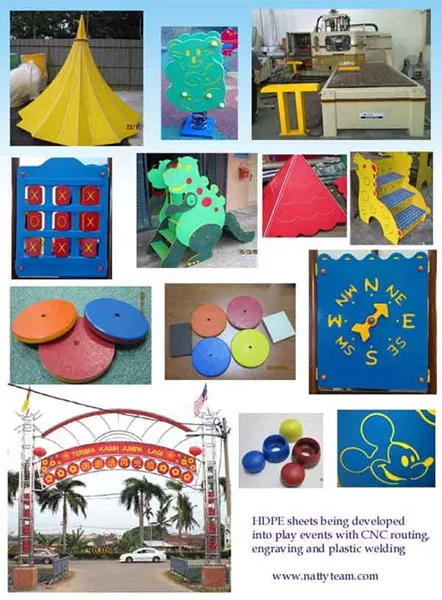

HDPE Panel Design Signboard

HDPE Panel Specification



HDPE is designed to offer greater rigidity and includes a fully formulated long term UV stabilization package (with a minimum UV-14 rating). The HDPE panel complies with Australian Food Contact requirements (AS2070:1, 8) and Potable Water standard AS4020.



Property Value Unit Test Method
Density 0.945 g/cm³ ASTM D 792
Melt Index, Condition
190° C/2.16kg
4.1 g/10 min. ASTM D1238
ESCR, Condition A, F50
(100% Igepal CCO-630)
15 H ASTM D1693
Tensile Strength @ Yield 2 in
(50mm) per min.
21.4
3100 psi
psi ASTM D 638
 Type I
Elongation @ Break 2 in
(50mm) per min.
220 % ASTM D 638
 Type I
Flexural Modulus MPa
Crosshead speed: 2 mm/min
Support span distance: 82mm
(129,000)
889
psi ASTM D790
