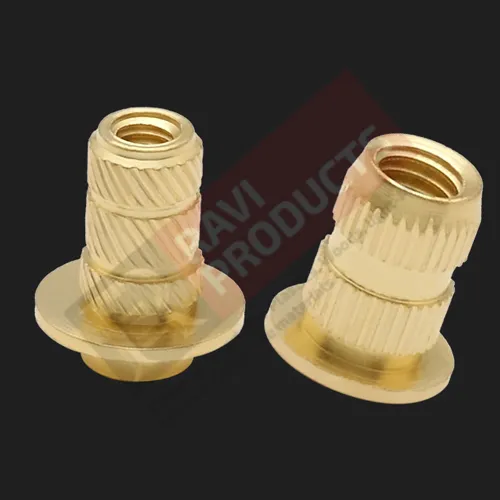

Press-In Brass Inserts

We are a leading press-in insert manufacturing company, providing a wide range of standard and non-standard inserts in a variety of materials, sizes, types, and quantities. The simplest press-in inserts typically consist of an internal thread with a diamond knurl on the outer diameter, leaving a short length smooth. A partial slit runs the length of the knurls, allowing a degree of elastic deflection inward. A flange on the head side can greatly improve pull-through strength while straight knurls can help resist torque-out. To forego a slit or knurls, a hex body with a simple barb profile addresses both torque-out and pull-out with limited tooling.

The offered range of industrial press-in inserts is manufactured by our engineers in complete adherence to international quality standards. This range has been in wide demand on the market for its comprehensive features. Apart from press-in inserts, we also provide expansion inserts, hex inserts, knurled bush, moulded inserts, press in inserts, self-tapping inserts, special inserts, threaded inserts, and many others.

Our products including press-in inserts are available in various grades and specifications to match the most complex requirements of customers. We use high grade raw materials to design and manufacture high quality press-in inserts as per the specifications. To meet all simple to complex industrial or commercial applications, we also provide custom press-in inserts as per custom design/drawing/sample/dimension specification.

Overview
Specifications

Material:

Brass : C3604, Brass IS-319 Type-1, C36000, CuZn39Pb3, CuZn39Pb2, CuZn38Pb2, CuZn38Pb1.5
Steel : Steel EN1A/EN1AL,12L14, 11SMNPB30, 9SMNPB28
Aluminium : EN AW-6060, EN AW-6061, EN AW-6082
Special metal material composition as per customer requirements.

Availability:

In India as well as USA, UK, Europe, and Australia.

Surface Finishing:

Any finishing / coating as per customer requirement.

Key Features of Press-in Inserts:

Provide pull-out and torque-out resistance.
Provides strong, reusable threads. No heat or ultrasonics required.
Offer good resistance to heat and chemicals.
Provide a reliable and durable threaded hole solution without the risk of stripping threads in softer materials.
Knurls or barbs on the outer surface prevents the insert from rotating or loosening over time.

Applications of Press-in Inserts:

Press-in inserts are mechanical fasteners used to provide a threaded hole or anchor point in a material, typically plastic, wood, or soft metals like aluminium.
Press-in inserts are suitable for applications where a strong, threaded hole is needed in materials that may not support threads well on their own, such as plastics or thin sheet metals.
Aluminium press-in inserts can solve mounting problems concerning electronic components onto plastic or composite structures, they are still made of metal, which add weight to the assembly.
Press-in inserts may still be desirable should future maintenance be expected, as the metal threads make for a more reliable joint that can still be reliably disassembled and reassembled.
